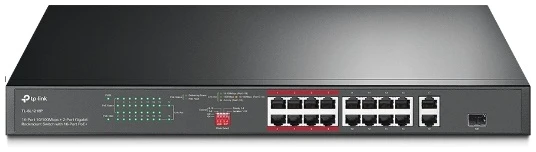

TP-Link Switch PoE – TL-SL1218P (16port 100Mbps; 16 at/PoE+ port; 2x Combo SFP; 150W, 250m extended mode)

29 211 690 Ft

HALTPLTLSL1218P

Készlet állapot: RAKTÁRON

Cikkszám: 83770 Kategória:

Leírás

HARDWARE FEATURES
Interface  • 16× PoE+ 10/100 Mbps RJ45 Ports
• 2× 10/100/1000 Mbps RJ45 Ports
• 1× Combo Gigabit SFP Slot
Network Media  • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-X MMF, SMF
Fan Quantity  2 Fans
Physical Security Lock  Yes
Power Supply  100–240V AC, 50/60 Hz
PoE+ Ports(RJ45)  • Standard: 802.3at/802.3af compliant
• PoE Ports: Ports 1–16
• PoE Power Budget: 150 W
Dimensions ( W x D x H )  17.3 × 7.1 × 1.7 in
(440 × 180 × 44 mm)
Max Power Consumption  • 12.7 W (no power device connected)
• 172.8 W (with 150W power devices connected)
Max Heat Dissipation  • 43.3 BTU/h (no power device connected)
• 589.3 BTU/h (with 150W power devices connected)
PERFORMANCE
Switching Capacity  7.2 Gbps
Packet Forwarding Rate  5.36 Mpps
MAC Address Table  8K
Jumbo Frame  10 KB
SOFTWARE FEATURES
Advanced Features  • Compatible With IEEE 802.3at/af Compliant PDs
• Extend Mode (Up to 250m PoE power supply and data transmission)
• Priority Mode
• Isolation Mode
• Mac Address Auto-Learning And Auto-Aging
• IEEE802.3x Flow Control
Transmission Method  Store-And-Forward
OTHERS
Certification  CE, FCC, RoHS
Package Contents  • TL-SL1218P
• Power Cable
• Installation Guide
• Two mounting brackets
Environment  • Operating Temperature: 0–50 °C (32–122 °F)
• Storage Temperature: -40–70 °C (-40–158 °F)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
